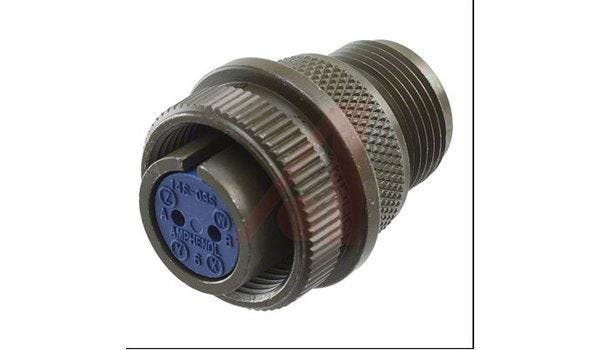

connector comp,shell only,metal circular,str plug,solid bkshl,size 20,olive drab

March 9, 2013
97 Series Solder Type Circular Mating Connector, Plug, -55 to +125 °C
  • Medium to heavy weight cylindrical
  • Durable, field-proven design
  • Environmental resistant
  • Single key?keyway polarization
  • Threaded coupling, hard dielectric inserts
  • Non-rotating contacts
  • Intermateable and intermountable with existing
  • Alternate insert positioning
  • High temperature and potting constructions
  • Special plating finishes including black and green zinc alloy
  • Thermocouple arrangements available
    MIL-C-5015 style, provides the interconnection solution for low cost. Shell components are fabricated from high grade aluminum alloy to provide strength and environmental protection. Connector components are fabricated from high grade aluminum alloy, with a conductive cadmium plate finish and an olive drab chromate after-treatment. Some cable clamps are a zinc alloy with an olive drab?green chromate finish. Contacts are silver plated with pre-tinned solder cups
  • Type: Plug Shell Only  |  Brand/Series: 97 Series  |  Strain Relief: Solid  |  Angle: Straight  |  Primary Type: 5015 Commercial  |  Housing Type: Metal  |  Shell Size: 20  |  Application: Commercial  |  Finish, Housing: Olive Drab Cadmium  |  Agency Approvals: UL/CSA  |  Class: A  |  Mounting Type: Free Hanging  |  Material, Housing: Aluminum Alloy  |  Mating Type: Threaded  |
