Conn; Term Blk; DINRail; Grd; Screw; .2-6 sq.mm; 24-10AWG; 6.2mm W; Green-YL

March 9, 2013

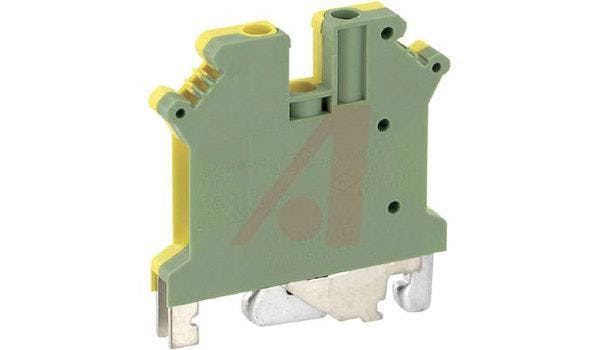

Ground Terminal Block with Screw Connection, Color Green-Yellow, PA Insulating Material
  • Surge voltage is 8 kV
  • Width is 6.2 mm
    Number of level is 1. Number of connections are 2.
  • Agency Approvals: cULus, CSA  |  Material, Insulation: PA  |  Torque, Tightening: 0.6Nm  |  Phoenix Part Number: USLKG 5  |  Termination: Screw  |  Color: Green?Yellow  |  Number of Poles: 2 Poles  |  Type: Ground  |  Dimensions: 42.5 mm L x 6.2 mm W x 52 mm H mm  |  Pin Spacing: 6.2mm  |  Length, Stripping: 8mm  |  Wire Size: 26-10AWG  |  Primary Type: DIN Rail  |  Wire, AWG: 26-10  |  Cross-Section Area: 0.2-4 mm²  |  Voltage, Surge: 8kV  |
