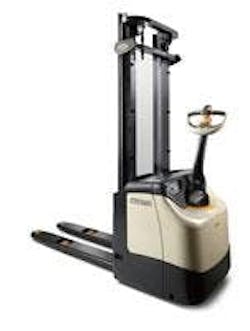

ES 4000 Compact Pallet Stacker Series

July 24, 2013

The ES 4000 Stacker Series is designed and engineered to provide precision and power in small spaces. It is capable of handling capacities up to 3,500 lb. and can reach a lift height of 132 in. The forklift is ideal for use in stacking, stock replenishment, and work positioning in a variety of industries, including manufacturing and printing operations. The compact pallet stacker offers enhanced handling and control features with increased all-around visibility and exceptional maneuverability. It has a fork-over design where the forks nest directly over the outriggers to handle a variety of items, from open-bottom pallets and skids to wire baskets.


At the core of the Crown ES 4000 is the heavy-duty drive unit, which features a Crown-built AC drive motor and cast iron gearbox. The AC traction system offers responsive control and smooth directional changes. The motor’s brushless design eliminates the need for routine brush inspection and replacement. Crown's e-GEN braking system uses the motor’s powerful torque to deliver frictionless braking, which eliminates mechanical braking during normal operations and significantly reduces the need for brake adjustments and overall maintenance.


Crown's Access 123 technology provides optimum performance and control through intelligent coordination of traction, hydraulic, braking, and other forklift systems. The customer can configure the truck so that the display interface allows operators to choose from three performance settings that can be programmed to customize stacker performance for specific applications or operator requirements. Up to 25 secure PIN codes can be assigned to individual operators and matched to one of the pre-programmed performance profiles.


The Crown ES 4000 also includes Crown’s exclusive X10 Control Handle, which features advanced ergonomics so operators can work more efficiently, and offers proportional lift-and-lower control for precise handling and load placement. A patented brake override feature ensures accurate maneuvering in tight spaces when the handle is in the near-vertical position, reducing the risk of damage to the truck, load, and facility. The handle also features a switch that allows operators to quickly change to a slower speed to help navigate tight areas or position loads. A die-cast aluminum handle features structural webbing and attaches to a heavy-duty steel tiller arm for long-lasting durability.

  • Load Capacity: 3,500 lb.
  • Max Lift Height: 132 in.
  • Power (Electric): 24V / 250 - 375 Ah
  • Head Length: 31 in.
  • Width Overall: 31.5 in.
  • Nominal Fork Length: 42 in.
