ULTRAPLUG Hole Plug Assembly Covers Holes Easily

Sept. 24, 2013

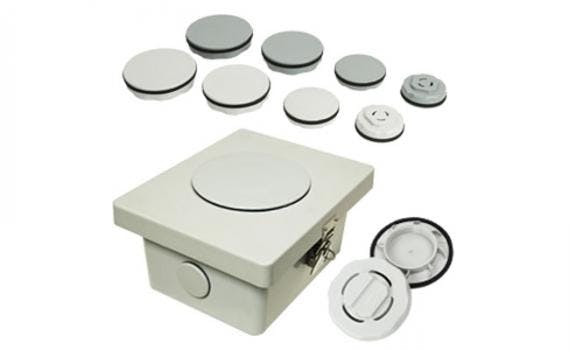

The ULTRAPLUG Hole Plug assembly creates a self-centering, anti-rotational plug that ensures a quick, one-person assembly and installation, plus no-tools tightening.



The plugs fit a wide range of hole sizes without the use of restrictive and unreliable plug-centering spacers and are available in a corrosion-resistant polycarbonate material with a neoprene/EPDM gasket. The hole plugs are molded in two colors: RAL 7035 (light gray) to match the industry standard for most nonmetallic enclosures and ANSI 61 (dark gray) to match the industry standard for painted carbon steel enclosures. The ULTRAPLUG is an easy solution for plugging unused holes ranging from 1/2 to 4 3/4 in. in size.



They can be used with wall thicknesses from 16 gauge through 1/4 in. in metallic and nonmetallic enclosures. Their low-profile interior nut and exterior plug save valuable panel space. In addition, this design very effectively reduces the amount of time required for assembly and tightening.

  • Plug “fins”: self-centering, anti-rotational design for fast & easy one-person plug assembly and no-tools tightening
  • Plug fits a wide range of hole sizes without the use of restrictive hole-centering spacers
  • Patented design: U.S. Pat No. 9,045,932
  • Recognized component for use with UL & CSA listed enclosure products
  • Molded material construction for a wide range of chemical-compatible applications (polycarbonate with neoprene/EPDM gasket)
  • Assembly designed to maintain applicable NEMA/UL/CSA enclosure ratings
  • Designed for use with wall thicknesses from 16 gauge through 1/4 in.
  • Designed for use with all metallic and nonmetallic enclosure materials
  • Low profile interior nut and exterior plug saves valuable panel space
  • Capable of sealing unused holes ranging in size from 1/2 to 4 3/4 in.
