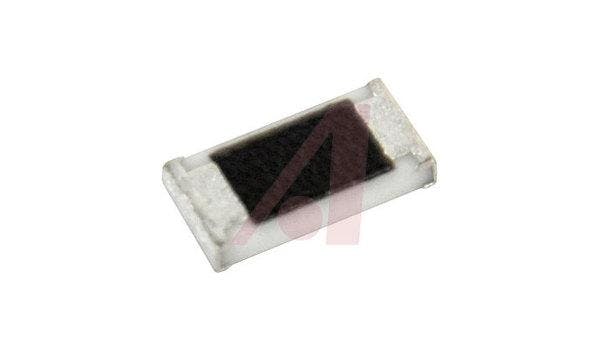

Resistor;Thick Film;Res 1 Kilohms;Pwr-Rtg 0.125 W;Tol 1%;SMT;0805;Cut Tape

Features:

Small Size and Lightweight

High Reliability — Metal Glaze Thick Film Resistive Element and Three Layers of Electrodes

Compatible with Placement Machines

Suitable for Both Reflow and Flow Soldering

Reference Standards: IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B

Package Type:0805 (2012 mm) | Tolerance:±1 | Temperature Range:–55 to +155 | Termination:SMT | Material, Element:Thick Film | Power, Rating:0.125 | Special Features:Precision | Temperature Coefficient:±100 | Dimensions:0.079x0.049x0.024" (2x1.25x0.6 mm) | Resistance:1 | Packaging:Cut Tape (CT) |
