Topworx GO Switch Model 52M

Nov. 3, 2017
Emerson Industrial Automation introduces a proximity sensor for outdoor and challenging environments.

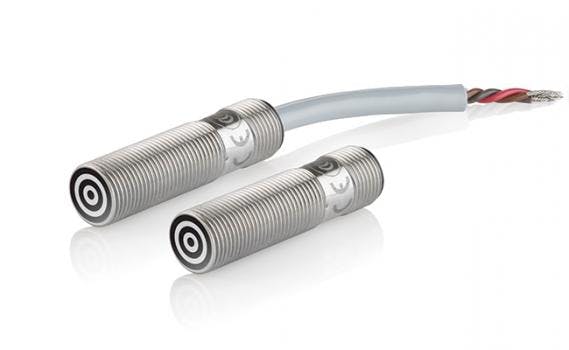

Emerson has introduced the Topworx GO Switch Model 52M, a 0.47 in. (12 mm) proximity sensor designed specifically for applications in outdoor and challenging industrial environments. The sensor is well-suited for material handling, mobile equipment, industrial equipment, and food and beverage processing applications.



The GO Switch 52M is highly durable, does not require power, and operates across a wide temperature range. The sensor is ideal for OEMs desiring reduced maintenance and fewer equipment breakdowns. The GO Switch provides a much more rugged alternative to the inductive proximity sensor and is far more reliable than a reed switch.



The Model 52M incorporates the GO Switch’s unique dry contact proximity sensor technology that uses magnets to control a set of contacts. This technology’s durability and reliability have been proven in over 60 years of service in the process industries.

Nominal Sensing Distance0.060 in. (1.5 mm)Hysteresis0.008 in. (0.2 mm)Actuating ElementFerrous metal or magnet (N)DC Electrical Rating2A @ 24V DCAC Electrical Rating2A @ 120V ACMax Initial Contact Resistance0.5 OhmMax Switching Frequency10 HzOperating Temp. Range-40 to 212°F (-40 to 100°C)Enclosure Material316L stainless steel
