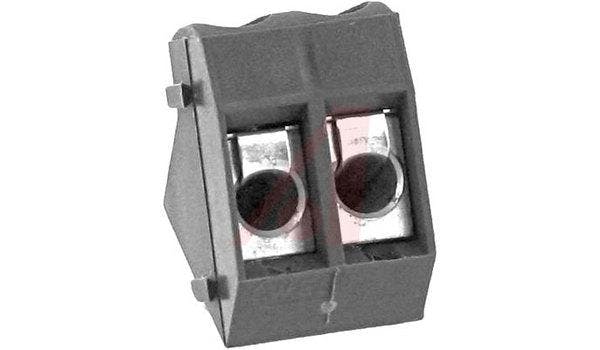

Conn; Term Blk; PCB; Screw; 2; 5.08 mm;45 Deg; 26-12 AWG; Gray; 20 A; 300 V

Jan. 17, 2014
PCB Screw Connector, 300 V Voltage Rating, Polyamide Body Material, Grey Color All products feature dovetail interlocking, which allows for assembly to the required number of poles while maintaining center to center spacing. Specifications. Insulating Material: Polyamide, self extinguishing to UL 94, V-0, color gray. Temperature Limits: Short Time — 140°C/284°F; Continuous — RTI 105°C/221°F; Low Limit — –40°C/–40°F. Comparative Tracking Index: CTI >600. Oxygen Index Rating: 32%. UL File E69841. CSA File LR24322. 2500 V (rated impulse) withstand voltage, tin plated copper alloy terminal material.Primary Type:PCB | Brand/Series:96 Series | Temperature Rating:-40 °C (Low Limit), +140 °C (Short Time) | Voltage, Withstanding:2500 V (Rated Impulse) | Material, Terminal:Tin Plated Copper Alloy | Pin Spacing:0.2(5.08) | Torque, Tightening:4.5 lbfin. (Max.) (UL), 0.51 Nm (Max.) (CSA) | Color:Gray | Material, Body:Polyamide | Current, Rating:20 | Cross-Section Area:2.5 | For Use With:Printed circuit boards | Length, Stripping:0.26 | Number of Poles:2 Poles | Connector Type:Screw | Termination:Screw | Agency Approvals:UL, CSA | Wire, AWG:26-12 | Wire Entry:45 deg | Voltage, Rating:300 |
