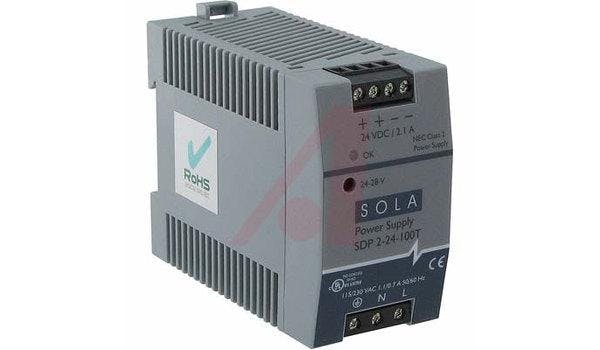

Power Supply;AC-DC;[email protected];85-264V In;Enclosed;DIN Rail Mount;SDP Series

Easy Output Adjustment with Front Panel Potentiometer

PowerBoost Included — Powers High Inrush Loads without Shut Down or Foldback

Easy Screw Clamp Connections — Meets IP20 Standards, Accepts 10-16 AWG Wire

Over-Voltage Protection — Protects Loads from Damage Due to High Voltage

Short Circuit Protection — Withstands Short Circuits with No Damage or Degradation of the Power Supply

Rated from –10 to +70°C with No Derating Needed Until After 60°C

NEC Class 2 Current Limited Except as Indicated

Three-Year Warranty — Warranties the Power Supply for Three Years

Primary Type:AC-DC | Frequency:47 to 63 | Power, Output:100 | Type:Industrial | Mounting Type:DIN Rail | Temperature, Operating, Minimum:-10 | Number of Outputs:1 | Configuration:Enclosed | Current, Rating:1.1?0.7 | Brand/Series:SDP Series | Width:1.77 | Voltage, Output:26 VDC | Voltage, Rating:85 to 264 VAC?90 to 375 VDC | Temperature, Operating, Maximum:60 | Height:2.95 | Output:[email protected] | Operation:Switching | Voltage, Input:85-264 |
