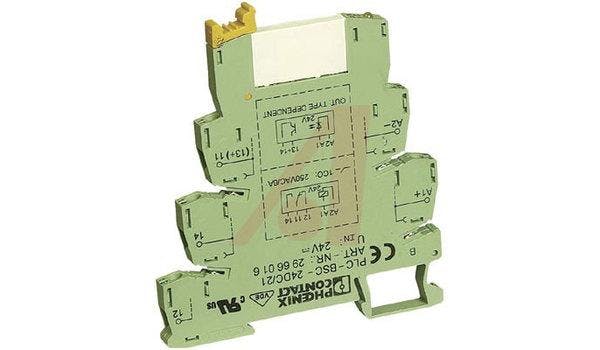

Relay;E-Mech;PLC;SPDT;Cur-Rtg 6A;Ctrl-V24DC;Vol-Rtg 250AC/DC;Screw;Pwr-Rtg 140W - Allied Electronics Inc
Jan. 17, 2014
Related To: Allied Electronics & Automation
PLC-RELAY Series: Terminal Block with Plug-in Relay or SSR The PLC-RELAY is the only pluggable quarter inch terminal block, which accepts either a solid-state relay or an electro-mechanical relay. Using only one part number, you are able to order both the base terminal block and the pluggable relay as a single unit. The PLC-RELAY is also available with switching capacities up to 10 A at 250 VAC. The PLC-RELAY now also available in both sensor and actuator versions. In these versions you can connect sensors and actuators to the base terminal blocks to eliminate costly wiring and additional output terminal blocks. The preceding variations are only a few of the possibilities that are available. There are now over 100 variations available in different configurations and ratings. Electromechanical & Solid-State RelayUniversal — Input or Output Application Input Specialist — Designed Specifically for 3 Wire Input Applications Output Specialist — Designed Specifically for 2 Wire Output Applications High Current / Inrush
Electromechanical Only 125 VDC Electro-Mechanical PLC Relays 3 5 VDC PLC Relay Base Terminal Block and Plug in Relays Brand/Series:PLC-RSC/RSP | Material, Contact:AgSnO | Current, Rating:6 | Termination:Screw | Voltage, Control:24 | Temperature, Operating, Minimum:-20 | Current Rating:6 | Relay Type:Electro Mechanical | Power, Rating:140 | Function:PLC | Contact Form:SPDT | Temperature, Operating, Maximum:60 | Standards:cULus, UL, RoHS | Voltage, Rating:250 | Phoenix Part Number:PLC-RSC- 24DC/21 |
Electromechanical Only
