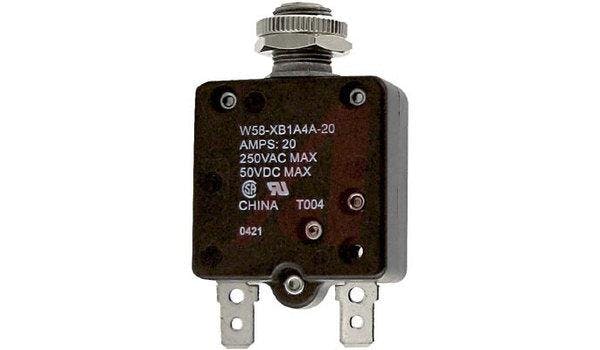

Circuit Breaker;Therm;Push;Cur-Rtg 20A;Panel;1 Pole;Vol-Rtg 250/50VAC/VDC - Allied Electronics Inc

Features:

0.5 Amp to 30 Amp Ratings

Cannot Be Manually Tripped

Button Extends for Visual Indication

Push Button to Reset Breaker

Termination is Screw or 0.250" QC

Bottom Marked Amperage Rating Optionally Available

Brand/Series:W58 Series | Type:Thermal | Mounting Hole Size:D-Shaped, 0.48 Dia. x 0.47 H | Mounting Type:Panel | Voltage, Rating:250/50 | Standards:CSA Certified | Termination:Quick Connect | Time, Trip:6 to 30 | Tyco Part Number:1-1393249-2 | Number of Poles:1 | Dimensions:1.375 L x 0.66 W x 1.375 H | Color, Button:White with Red Rate Marking, Red Trip Band | Actuator Type:Push | Current, Rating:20 | Primary Type:Circuit Breaker | Special Features:UL 1077 Recognized |
