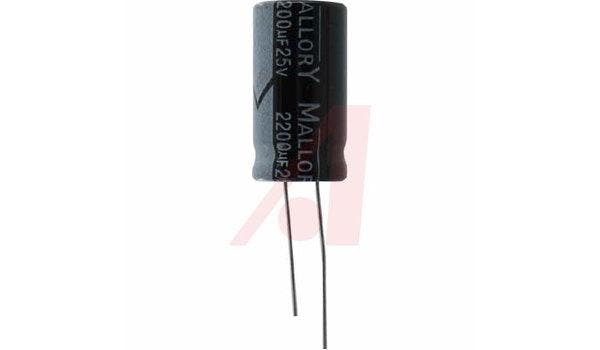

Capacitor;Al Electrolytic;2200 uF;20%;25 VDC;Radial;ESR 0.11 Ohms;13x26mm

The SEK Series is a radial lead, high temperature, general use miniature electrolytic capacitor. The SEK Series is suitable for consumer electronic equipment, telecommunication equipment and general industry products requiring high temperatures. The aluminum case is enclosed in a vinyl sleeve.

Capacitance Range: 0.47 to 15000 ?F

Tolerance: ±20%

Voltage Range: 6.3 to 450 VDC

Operating Temperature: –40° to +105°C

Meets RoHS Lead Free Definition

ESR:0.11 | Diameter:13 | Current, Ripple:1230 mA at 120 Hz, 105 °C | Voltage, Surge:32 | Length, Lead:15 | Diameter, Lead Wire:0.6 | ESR, Maximum:0.11 Ohms at 120 Hz, 25 °C | Tolerance:±20 | Length:26 | Lead Pitch:5 | Temperature, Operating, Maximum:105 | Temperature, Operating, Minimum:-40 °C | ESR, Test Condition:@ +25°C, 120 Hz | Capacitance:2200 | Voltage, Rating:25 | Dissipation Factor:16% at 120 Hz, 25 °C | Material, Element:Aluminum Electrolytic | Termination:Radial |
