Relay;E-Mech;Timing;Off Delay;DPDT;Cur-Rtg 12A;Ctrl-V 24AC/DC;Blade;11 Pin

Jan. 18, 2014

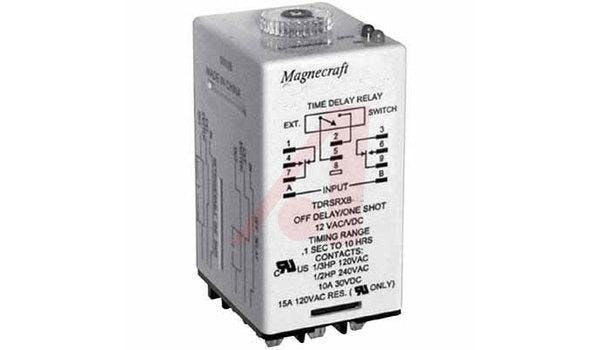

Octal or square base 12 A @ 240 VAC/30 VDC multifunction time delay relays have two functions with 8 selectable timing ranges from 0.1 seconds to 10 hours. The input voltage can be AC or DC. All function and timing are selected from the DIP switch and timing fine tuned with a removable adjustment knob. Removing knob makes timer tamper proof. The red and green LED indicates power applied to the input (green), output energized (red). Repeatability ±3% full scale. Non-polarity sensitive.
Contact Material:
Silver alloy, gold flashed. Operating Temperature: –20°C to +55°C. Electrical Life: 100,000 operations at rated load. Mates with 70-464-1, 70-465-1, 70-750DL8-1, 70-750DL11-1 and 70-463-1 screw terminal sockets. Optional panel or DIN rail adapters available.Functions:
  • TDRSOX: On Delay, Interval
  • TDRSRX: Off Delay, Retriggerable One-Shot

  • Dual Function: On Delay/Interval, Off Delay/Retriggerable One Shot
  • Indicator LEDs: Green Shows Power ON, Red Shows Output Relay Energized
  • Compact Size: 36 mm Wide to Optimize DIN Rail Space
  • Contact Form: DPDT
  • Accepts Flange Adapters: Panel Mount or DIN Mount with Terminals Exposed
  • Removable Knob: Prevent Tampering, Remove Knob to Expose Recessed Screwdriver Slot
  • Protection: IP40
  • Temperature, Operating, Minimum:-20 | Termination:Blade | Relay Type:Electro Mechanical | Standards:UL, CE | Brand/Series:TDRSRX Series | Timing Range:0.1 sec. to 10 hrs. | Voltage, Rating:240?30 | Contact Form:DPDT | Timer Type:Off Delay | Display Type:LED | Current, Rating:12 | Function:Timing | Voltage, Control:24 | Temperature, Operating, Maximum:55 | Number of Pins:11 | Material, Contact:Silver Alloy |
