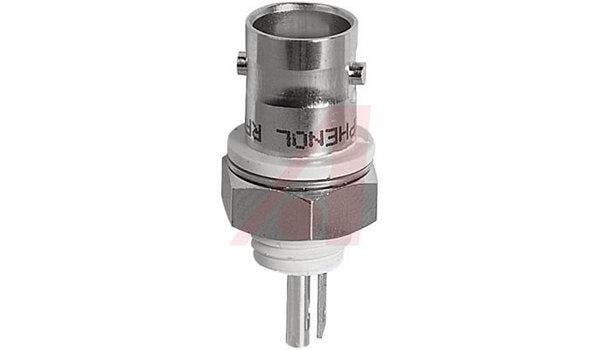

connector,rf coaxial,bnc commercial blkhd recept,front mount,grnd tab,solder cup

BNC Connector, 50 Ohms Impedance, BNC Cable Type Note: These connectors meet or exceed military specification, but aren't on the QPL and are intended for commercial use only. Military specification numbers, where shown, are for reference only. Two distinct types of 75 Ohm BNC are available, both mate with each other and with 50 Ohm BNCs. Type 1 is designated 75-T1 and provides constant 75 Ohm performance with low VSWR DC to 4 GHz. Type 2 is designated 75-T2 and is usable with low reflection DC to 1 GHz. For applications above 1 GHz, Type 1 is recommended. BNC bulkhead receptacle connector type.Contact Plating:Silver | Mating Type:Bayonet | Voltage, Rating:500 | Gasket:Silicone Rubber | Angle:Straight | Material, Dielectric:Nylon | Temperature, Operating:-65 to +165 °C (TFE Insulators) ? -55 to +85 °C (Copolymer of Styrene) | Impedance:50 | Termination:Solder | Finish, Housing:Nickel | Material, Contact:Phosphor Bronze | Mount Method:Front | Type:Panel Jack | Primary Type:BNC | Material, Housing:Brass | Mounting Type:Bulkhead | Special Features:Isolated | Application:Commercial |
