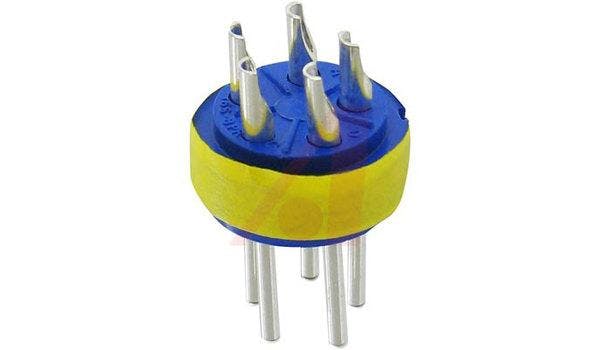

Plug Insert, Amphenol® 97 Series Connectors with Solder ContactsMedium to heavy weight cylindrical Durable, field-proven design Environmental resistant Single key?keyway polarization Threaded coupling, hard dielectric inserts Non-rotating contacts Operating temperatures from -55 °C to +125 °C
Connector components are fabricated from high grade aluminum alloy, with a conductive cadmium plate finish and an olive drab chromate after-treatment. Contacts are silver plated with pre-tinned solder cups. Optional gold over silver plating is also available. Inserts for solder style contacts are diallyl-phthalate. Type:Insert Plug | Wire, AWG:#16 | Number of Contacts:5 | Pin Spacing:1/16 | Contact Mating Area Plating:Silver | Insert Style:Machine Contact | Number of Poles:5 (#16 AWG) | Contact Type:Pin | Primary Type:Industrial | Contact Plating:Silver | Material, Dielectric:Diallyl-Phthalate | Temperature, Operating:-55 to +125 | Brand/Series:97 Series | Standards:UL Recognized, CSA Certified | Material, Housing:Aluminum Alloy | Termination:Solder | Shell Size:16S | Agency Approvals:CSA, UL | Voltage, Rating:500/700 | Current, Rating:13 A (#16) | Finish, Housing Test:Olive Drab Cadmium | Gender:Male |
Connector components are fabricated from high grade aluminum alloy, with a conductive cadmium plate finish and an olive drab chromate after-treatment. Contacts are silver plated with pre-tinned solder cups. Optional gold over silver plating is also available. Inserts for solder style contacts are diallyl-phthalate.
