Automation Suite HMI Display Panels

March 27, 2014
Kollmorgen's suite of IP65-rated HMI display panels are simple to program with the display and input capabilities.

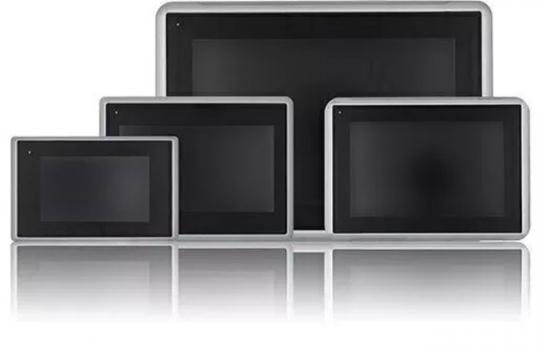

Automation Suite HMI IP65-rated touchscreen panels feature a single-surface screen with a widescreen format, a rugged aluminum chassis housing, and premium configuration and screen-building software as standard features. In addition, all models provide Ethernet, are easily programmed with the Kollmorgen Visualization Builder graphical tool, and feature display and input capabilities ideally suited for use in a wide range of packaging, food processing, and printing machinery applications.


Kollmorgen’s HMI uses a 16:9 format and provides up to 30% more usable screen area than previous-generation models. All standard models also feature integrated Ethernet, as well as data logging and trending software. Nine different panels can all be programmed using the same premium software.

  • Wide-screen format
  • Available in corrosion-resistant plastic housing with IP65 front or robust aluminum housing powdered coated gray with IP65, NEMA 4X/12, and UL Type 4X/12 front
  • Choice of power-efficient ARM9 processor that provides strong performance for small and medium-sized applications or powerful ARM A9 processors available in single or dual-core ARM Cortex-A9 processors
  • High-resolution TFT-LCD with LED backlight displays
  • Migration tables to find the right panel when you want to upgrade
  • 5 in. (127 mm) Touchscreen HMI — 800 x 480 Pixels
  • 7 in. (178 mm) Touchscreen HMI — 800 x 480 Pixels
  • 12.1 in. (307 mm) Touchscreen HMI — 1280 x 800 Pixels
