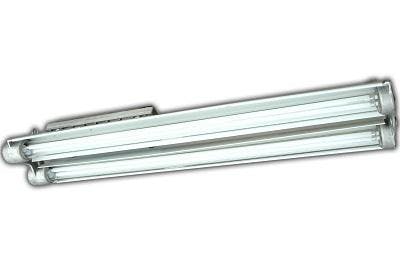

Low Profile Explosion Proof Fluorescent Light Fixture - Larson Electronics LLC

This 4 foot long, 4 lamp light fixture is approved for use in a Class 1 Division 1&2 and Class 2 Division 1&2 environments, carries a T6 temperature rating, and is also approved for use in paint spray booth applications. This unit comes standard with our T5 high output fluorescent lamps that are protected by heat and impact resistant Pyrex tubes. The fixture is constructed of copper free aluminum alloy and the lamp reflectors are corrosion resistant heavy gauge aluminum.

U.L. Listing: United States – Canada                                            U.L. Ratings

Total Watts: 216                                                                              Class 1 Division 1, Groups C,D

Total Lumens: 20,000                                                                     Class 1 Division 2, Groups A,B,C,D

Voltage: Universal 120-277V AC 50/60Hz                                  Class 2 Division 1-2, Groups E,F,G

Lamp Life Expectancy: 20,000 Hours                                           UL 595 Outdoor Marine Type (Saltwater)

Efficiency: 92 Lumens per Watt                                                    UL 844, 924

Color Temp: 5000K or 4100K                                                         UL 1598 Marine Type

Mounting: Surface Standard – Pendant Optional                     California Title 24 Compliant

Operating Temp Rating: T6 Rated                                                 UL Certified Canadian Standards

Contact us for special requirements                                             UL Listed  for Paint Spray Booths
