Hazardous Area Fluorescent Light Fixutre

June 9, 2014

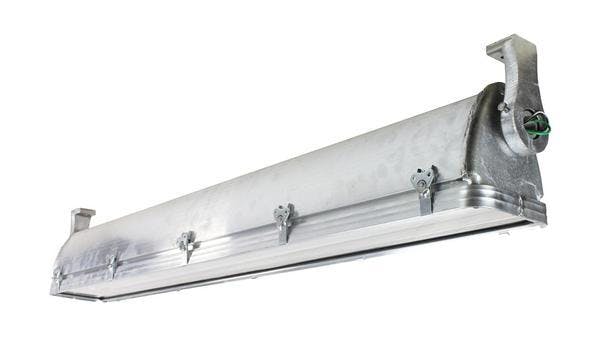

This fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 hazardous area fluorescent light and a good choice for use in applications where space is at a premium. This fixture is T4A temperature rated, comes standard with F54-T5/850/HO bulbs, and is available with optional T12/HO and T8/841 bulbs. The lamps are protected by an aluminum framed shatter and heat resistant clear acrylic lens secured with ten draw latches and the fixture is constructed of copper free aluminum alloy.

U.L. Listing: United States – Canada                                                 U.L. Ratings

Total Watts: 108 *Standard T5HO                                                    Class 1 Division 2, Groups A,B,C,D

Total Lumens: 10,000 *Standard T5HO                                           UL 595 Outdoor Marine Type (Saltwater)

Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V-60Hz,                  UL 1598 Marine Type

277V-60Hz                                                                                              California Title 24 Compliant

Lamp Life Expectancy: 20,000 Hours *Standard T5HO

Color Temp: 5000K *Standard T5HO

Mounting:  Bracket Standard – Pendant Optional

Wiring Hub: ¾ inch threaded

Operating Temp Rating: T4A Rated

Contact us for special requirements
