Class 1 Division 2 LED Light Fixture

June 9, 2014

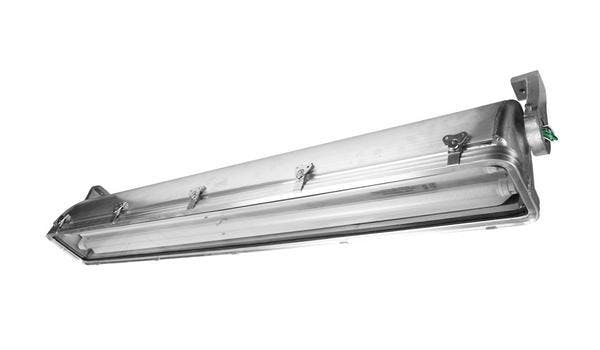

This fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 24 watt LED lamps. The lamps are protected by an aluminum framed shatter and heat resistant clear acrylic lens secured with ten draw latches and the fixture is constructed of copper free aluminum alloy.

U.L. Listing: United States – Canada                                                U.L. Ratings

Total Watts: 48                                                                                    Class 1 Division 2, Groups A,B,C,D

Total Lumens: 4,320                                                                           UL 595 Outdoor Marine Type (Saltwater)

Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V-60Hz,                 UL 1598 Marine Type

277V-60Hz or 12-24V DC                                                                    California Title 24 Compliant

LED Lamp Life Expectancy: 50,000 Hours

Color Temp: 5300K

Mounting:  Bracket Standard – Sliding Bracket Optional

Wiring Hub: ¾ inch threaded

Operating Temp Rating: T4A Rated

Contact us for special requirements
