Class 1 Division 2 Hazardous Area LED Pivoting Light - Larson Electronics LLC

June 9, 2014

Related To:

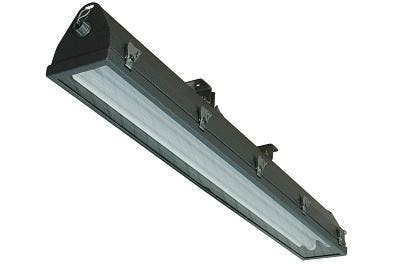

This fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 24 watt LED lamps. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with ten zinc coated steel draw latches.

U.L. Listing: United States – Canada U.L. Ratings

Total Watts: 48 Class 1 Division 2, Groups A,B,C,D

Total Lumens: 4,320 UL 844

Voltage: Universal 120-277V AC 50/60Hz or 12-24V DC UL 1598 Marine Type (Salt Water)

LED Lamp Life Expectancy: 50,000 Hours UL Listed for Canada

Color Temp: 5600K or 4100K Meets USCG Specs

Mounting: Back Mount Swivel Bracket California Title 24 Compliant

Wiring Hub: ¾ inch threaded

Operating Temp Rating: T4A Rated
