Class 1 Division 2 Hazardous Area LED Pivoting Light - Larson Electronics LLC

June 9, 2014

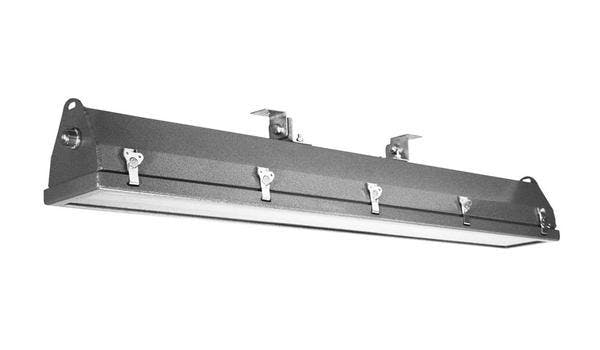

This fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 2 hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 15 watt LED lamps. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with four zinc coated steel draw latches.

U.L. Listing: United States – Canada                                                U.L. Ratings

Total Watts: 30                                                                                    Class 1 Division 2, Groups A,B,C,D

Total Lumens: 2,700                                                                           UL 595 Marine Type (Salt Water)

Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V-60Hz,                 UL 1598A Marine Type

277V-60Hz or 12-24V DC                                                                   California Title 24 Compliant

LED Lamp Life Expectancy: 50,000 Hours

Color Temp: 5600K or 4100K

Mounting:  Back Mount Swivel Bracket

Wiring Hub: ¾ inch threaded

Operating Temp Rating: T4A Rated

Contact us for special requirements
