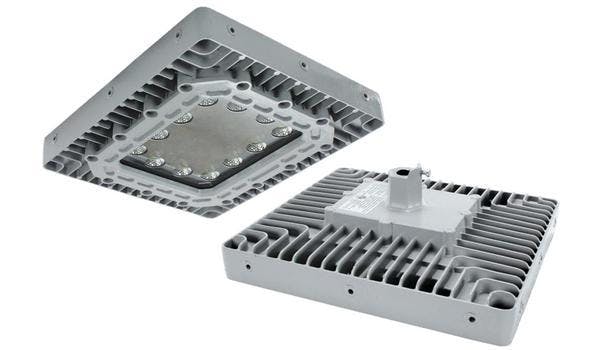

This Class 1 Division 1 & 2, Class 2 Division 1 & 2 explosion proof light fixture provides 12,000 of intense LED illumination while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures.
Lamp Type: LED Ratings
Total Watts: 150 Class 1 Division 1-2, Groups C,D
Total Lumens: 12,000 Class 2 Division 1-2, Groups E,F,G
Light Beam: Flood Pattern Class 3
Voltage: Multi – 100-277V AC 50/60Hz or 24V DC ETL Certified to UL844 and C22.2 Standards
Lamp Life: 60,000+ Hours Paint Spray Booth Approved
Color Temp: 6000K DLC Approved
Mounting: Pendant and Swivel Mount
Operating Temp Rating: T5
Contact us for special requirements
