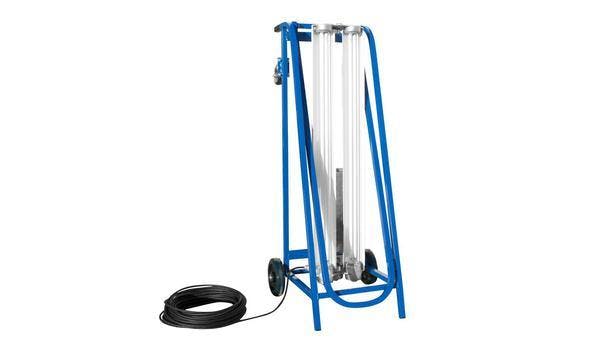

Explosion Proof Paint Spray Booth LED Light on Dolly Cart
This dolly cart mounted explosion proof light is rated Class 1 Division 1&2 and Class 2 Division 1&2 and offers operators the ability to quickly and easily add a full power light wherever it is needed. This unit incorporates four fluorescent lamps producing 20,000 lumens of light on a mobile dolly cart style platform. This configuration allows operators to wheel this light fixture into position next to the target or lay it flat and roll it under the piece to provide illumination beneath the target.
U.L. Listing: United States – Canada U.L. Ratings
Total Watts: 216 Class 1 Division 1, Groups C,D
Total Lumens: 20,000 Class 1 Division 2, Groups A,B,C,D
Lamp Life Expectancy: 20,000 Hours Class 2 Division 1-2, Groups E,F,G
Operating Temp Range: T6 Rated UL 595 Outdoor Marine Type (Saltwater)
Color Temp: 5000K or 4100K UL 844, 924
Mounting: Portable Dolly Cart with Wheels UL 1598A Marine Type
Wiring: 100’ SOOW UL listed for Paint Spray Booths
Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V-60Hz, 277V-60Hz
Contact us for special requirements
