Class 1&2 Division 1&2 LED Light with Round Base

June 10, 2014

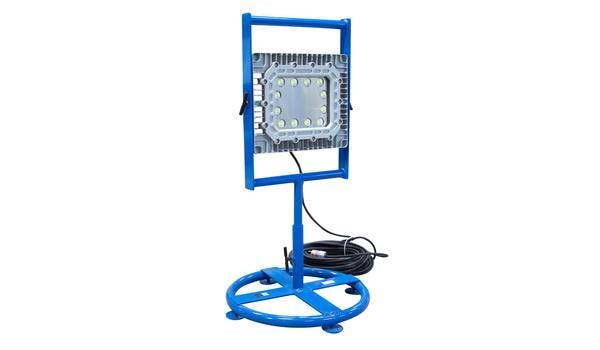

This explosion proof LED light provides 9,500 square feet of work area coverage with 12,000 lumens of light output while only drawing 150 watts. This unit is portable and can be easily  passed through manways 22" in diameter or larger. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present.

UL Listing: United States                                       Ratings:

Total Watts: 150                                                     Class 1 Division 1, Groups C,D

Total Lumens: 12,000                            Class 1 Division 2, Groups A,B,C,D

LED Lamp Life Expectancy: 60,000 Hours           Class 2 Division 1-2, Groups E,F,G

Operating Temp Range: T5 Rated                       UL Certified U.S. Standards

Color Temp: 6000K                            ECP1523 Class 1 explosion proof plug

Mounting: Round Aluminum Base                       DLC Approved

Voltage: Universal – 120-277V AC 50/60Hz

Wiring: 100ft SOOW cord – EXP Straight Blade Plug

Contact us for special requirements
