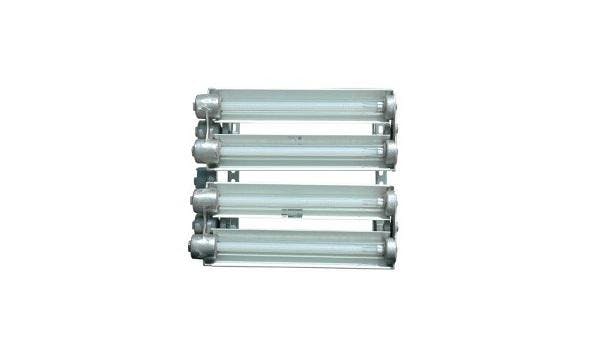

Explosion Proof LED Paint Spray Booth Light Fixture

June 23, 2014
2 foot long, 4 lamp LED light fixture is U.L. approved Class 1&2 Division 1&2 and is ideal for use in areas where flammable petrochemical vapors and/or pulverized dusts exist or have the potential to exist. This light is equipped with specially designed LED T-series bulbs which produce nearly 15% more light than standard T8 bulbs. This explosion proof light fixture is lighter in weight, has a slimmer profile, and produces more light than traditional explosion proof fluorescent light fixtures.

U.L. Listing: United States – Canada                                                           Ratings/Approvals

Total Watts: 60                                                                                                Class 1 Division 1, Groups C,D

Total Lumens: 5,400                                                                                       Class 1 Division 2, Groups A,B,C,D

Color Temp: 5600K or 4100K                                                                        Class 2 Division 1&2, Groups E,F,G

Operating Temp Range: T6 Rated                                                               UL 595 Outdoor Marine Type (Saltwater)

Lamp Life Expectancy: 50,000+ Hours                                                       UL Certified – Canadian Standards

Mounting: Unistrut                                                                                        UL Listed for Paint Spray Booths

Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V60Hz, 277V-60Hz         UL 844, 924

Low Voltage (Optional): 12-24V DC

Wiring Hub: ½ Inch Threaded

Contact us for special requirements
