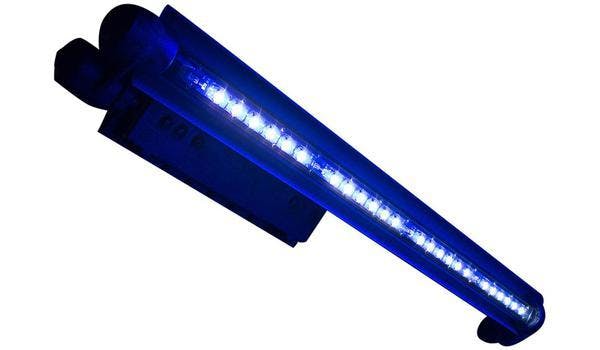

Explosion Proof 33.5 Watt LED Ultraviolet Light Fixture

June 23, 2014
This fixture is a 4 foot long, 1 lamp, Class 1&2 Division 1&2 explosion proof LED light fixture that emits light in the ultraviolet spectrum. This unit is U.L. approved for use in hazardous environments, paint spray booths, wet environments, and areas where UV lamps are used in paint and adhesive curing, food inspection, and for non-destructive testing. This lamp is protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy.

U.L. Listing: United States – Canada                                                       Ratings/Approvals

Total Watts: 33.5                                                                                        Class 1 Division 1, Groups C,D

Total Intensity: 19,200 mW                                                                      Class 1 Division 2, Groups A,B,C,D

Color: Ultraviolet – 365Nm                                                                       Class 2 Division 1&2, Groups E,F,G

Operating Temp Range: T6 Rated                                                           UL 844, 924

Beam Angle: 150°                                                                                        UL 1598 Marine Type

Mounting: Bracket Standard – Pendant Optional                                UL 595 Outdoor Marine Type (Saltwater)

Voltage: 120-277V AC 50/60Hz                                                                California Title 24 Compliant

Wiring Hub: ½ Inch Threaded

Lamp Life Expectancy: 50,000 Hours

Contact us for special requirements
