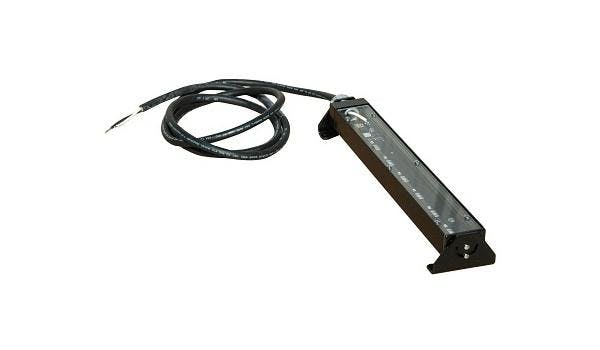

13.4” Low Voltage LED Light for Hazardous Locations

June 25, 2014
The HAL-13-8W-LED is designed to provide a high output and ruggedly durable lighting solution for applications where Class 1 Division 2 compliance is required. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to water spray and limited dust ingress. These units are configured in a 13" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred.

Lamp Type: LED                                                            Ratings/Approvals

Total Watts: 8.4                                                           Class 1 Division 2, Groups A,B,C,D

Total Lumens: 442                                                       CSA 22.2 No. 250.0

Color Temp: 6500K                                                     1598

Operating Temp Range: T3 Rated                           IP54 Ingress Protection

Beam Type: 100° Flood or 30° Spot

Lamp Life Expectancy: 100,000 Hours

Mounting: ¼” – 20 Screws/Aluminum 1” Yoke

Voltage: 12V DC (11-16V DC) – 24V DC (22-28V DC)

Wiring: 6ft Lead

Contact us for special requirements
