LED Strip Light for Hazardous Locations with Inline Transformer

June 25, 2014

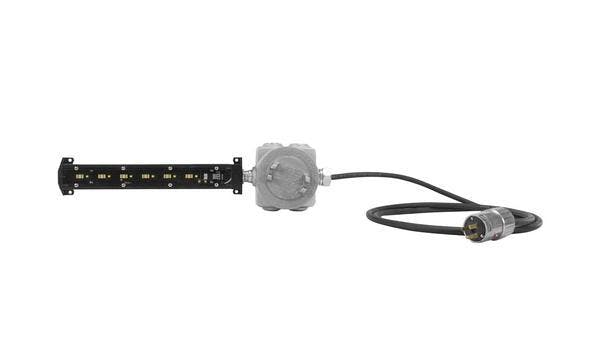

13" long strip or "bar" light is designed to provide a high output and ruggedly durable lighting solution for applications where Class 1 Division 2 compliance is required. This low voltage hazardous area light can be operated with 120-240 volt AC current with a step down transformer and includes 6 feet of connecting lead with standard two wire configuration. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to water spray and limited dust ingress.

Lamp Type: LED                                                       Ratings/Approvals

Total Watts: 8.4                                                      Class 1 Division 2, Groups A,B,C,D

Total Lumens: 442                                                  CSA 22.2 No. 250.0

Color Temp: 6500K                                                 UL 1598

Operating Temp Range: T3 Rated                       IP54 Ingress Protection

Beam Type: 100° Flood

Lamp Life Expectancy: 100,000 Hours

Mounting: ¼” – 20 Screws/Aluminum 1” Yoke

Voltage: 120-240V AC with Inline Transformer

Wiring: 6ft Lead – EPP-15A Explosion Proof Plug

Contact us for special requirements
