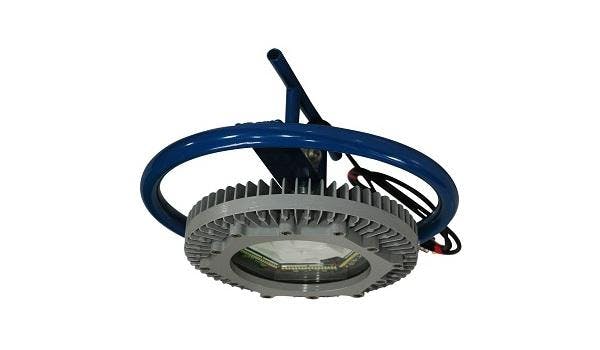

This Class 1&2 Division 1&2 explosion proof light fixture provides 10,000 lumens of high quality light while drawing only 150 watts. LED technology, an innovative 21" man-way support bracket, and compact design, makes this lamp an excellent lighting solution for operators working within storage tanks, railcars, and other locations where entry is through a 21" man-hole opening. This 16 inch diameter LED light is attached to a 21 inch supporting plate which allows the light fixture to hang inside the tank or railcar while the supporting plate rests on the lip of a man-way opening.
Lamp Type: LED Ratings/Approvals
Total Watts: 150 Class 1 Division 1&2, Groups C,D
Total Lumens: 10,000 Class 2 Division 1&2, Groups E,F,G
Color Temp: 6000K Class 3 Division 1&2, Groups E,F,G
Operating Temp Range: T5 Rated -40C to 60C cETL Certified to UL844 and C22.2 Standards
Lighting Configuration: Flood Pattern
Lamp Life Expectancy: 60,000+ Hours
Mounting: 21” Manway Entry Support Plate
Voltage: Multi – 100-277V AC, 50/60Hz
Wiring: 50ft SOOW Cord with ECP 1523 EXP Plug
Contact us for special requirements
