Rectangular Connectors Built for Harsh Food Manufacturing Environments

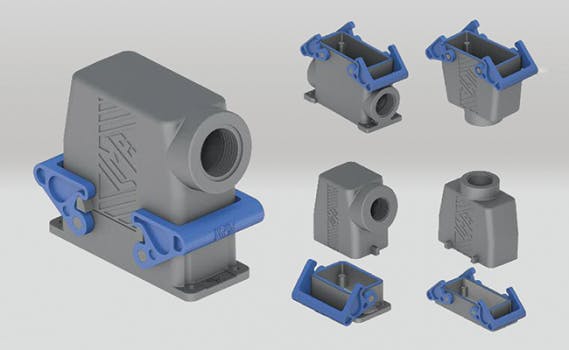

Using a unique molding technology, T-Type Hygienic rectangular connectors achieve the structurally solid and robust construction needed in the food industry. The food safe and self-extinguishing thermoplastic material is easily cleanable and resistant to the cleaning and sanitizing agents commonly used in food processing factories. The enclosures are certified by Ecolab Technical Application Service and satisfy the stringent requirements in the industry.
There are two series available in the Hygienic enclosures, T-Type/H and T-Type/C. T-Type/H is designed for production lines applications and features the HNBR rubber sealing gasket that has excellent resistance to both chemicals and animal/vegetable fats. T-Type/C is designed for low-temperature applications, and the sealing gasket is made of silicone rubber that is not only resistant to chemical agents and fats, but also low-temperature resistant as low as -50°C.
The Hygienic enclosure series is IP66 and IP69 rated to withstand rigorous high-pressure, high-temperature washdown procedures. The hood cable entries for smaller sized housing (44.27 and 57.27) are available in M25 and M32, and those of larger sized housing (77.27 and 104.27) are available in M32 and M40.
