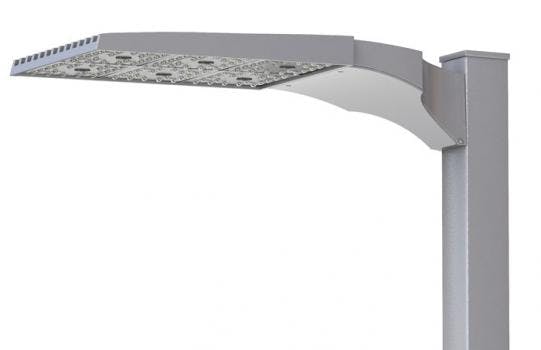

Razar G, a low-profile fixture for roadways and public areas features a Luxeon 120 LED module providing 400 W and a 36,000-lm package. Razar G measures 35.5 x 15 x 7 in. (L x W x D). Distinguished by the sleek, cutting-edge design, Razar complements contemporary architectural trends toward a clean, minimalist look. The optical housing is only 2.5-in. deep, reducing visual conflict with the surrounding architecture.
Other Razar family sizes are:
- Model RZR: 28 x 15 x 2.75-in. (L x W x D)
- Model RZRM: 22 x 11.5 x 2.5-in. (L x W x D)
All models are available in a broad range of distribution patterns, including Type II, Type III, Type IV, and Type V Sq. Rotatable LED modules (in 90-deg increments) and versatile pole mounting configurations, from single to quad-head, allow complete coverage of any site. Razar LED module configurations include 24, 40, 48, 80, and 120 LEDs that provide wattages from 39 to 400 W and lumen packages from 4,082 to 36,000 lm. Designed for energy savings, the 120 W Razar G LED package is equivalent to a 1,000 W metal halide fixture and delivers better uniformity.
Razar's LED drivers are flush mounted against the electrical compartment housing for maximum heat dissipation. They are held in place by a quick-release slip bracket for easy servicing. The fixture is available in black, white, grey, dark bronze, and green, in addition to custom colors. Optional occupancy sensors and photocell receptacles are available through specification. Razar optical housings and arm/electrical compartment components are constructed of durable corrosion-resistant low copper cast aluminum with a 0.25-in. minimum wall thickness.
