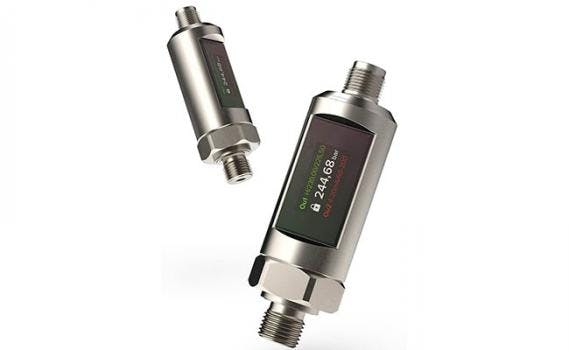

P.Touch Industrial Pressure Sensor w/IO-Link

Jan. 12, 2023
MP Sensor's pressure sensor features a touch screen where a virtual scrolling wheel and a TFT display enable an easy-to-read format.

The P.Touch pressure sensor incorporates an operating system that functions through a longitudinally installed touch screen where a virtual scrolling wheel and a TFT display enable plain text display of the menu items in an easy-to-read, high-resolution format. Additional information can be easily displayed on one screen as well as current pressure values and set switching points allowing reliable measurement of process pressures making it suited for applications such as pressure monitoring in hydraulic systems, monitoring of coolant supply or observing process pressure on injection molding machines.


The stainless steel housing and geometrically protected glass display ensure protection from wear and tear. The P-Touch has a protection rating of IP 67 and can measure liquid, gaseous or viscous liquids from 0 to 600 bar.

Distributor info:

Norstat now offers the MP-Sensor P.Touch Industrial Pressure Sensor with IO-Link. Contact Norstat for additional information, pricing, and availability.
  • Flexible use due to switchable outputs: digital (PNP/NPN/Push-Pull), analog, and IO-Link
  • Various pressure ranges between 0 to 600 bar
  • TFT touch display for pressure indication and switching point adjustment
  • Adjustment of the switching points via a virtual rotary wheel
  • Various diagnostic functions such as operating hours and pressure peak counter
  • Display/housing rotatable by 350-deg. after mounting the process connection
Type:With digital displayMeasuring Range:0 to 10, 0 to 16, 0 to 25, 0 to 40, 0 to 100,
0 to 250, 0 to 400, and 0 to 600 barCommunication Interface:IO-LinkOutput:2x switching signal (PNP), 2x switching signal (NPN),
2x Push-Pull, Analog Output 4-20 mA,
Analog Output 0 to10V, Analog Output 1 to 10VOutput Function:NO/NC (programmable)Accuracy:± 0,5% FSProcess Connection:G1/4 in. internal & external threadElectrical Connection:M12 4-poleMaterial (Housing):Stainless steel 1.4301
