Compact Precision Linear Stage System

Sept. 18, 2015

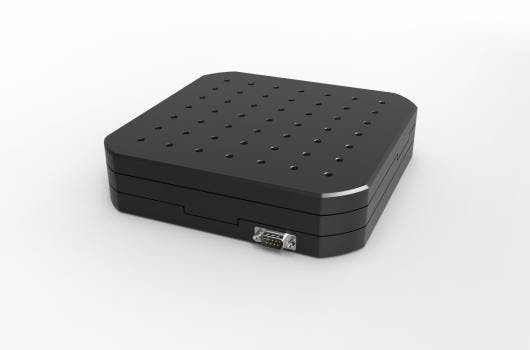

KT210-EDLM offers a sleek compact design with a height of only 50 mm and length and width of 210 mm. Travel is 100 x 100 mm and includes custom designed low profile direct drive ironless linear motors.

A key feature of this stage is that all motors, cable carriers and controller are integrated inside the unit, making this ideal for space saving motion applications. Additionally, due to the integrated controller, all electronics including motor drives are packaged completely inside; communication is simple though a universal USB interface.

  • Travel: 100 x 100 mm
  • Accuracy: +/- 13.6 µm (micron)
  • Repeatability: +/- 2.7 µm
  • Linear runout: +/- 4 µm
  • 1 each external input and output
  • Communication via USB or RS232
  • Full digital drives
