OEM Controllers with IoT and Telematics Connectivity

Nov. 5, 2015

Packed with expanded capabilities and cloud communication, the VB-2XXX family of controllers provides maximum flexibility for interfacing with and controlling equipment or adding IoT and Telematics capabilities to existing systems.

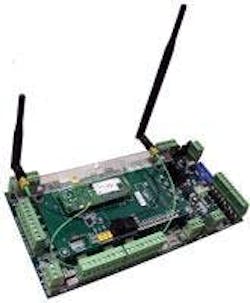

Featuring open-board construction, the VB-2XXX is mounted using industry standard DIN rail and has a high I/O count with 12 digital inputs, 3 high speed counter inputs, 8 digital outputs rated for 2A each (which are all PWM capable), 7 analog inputs which are user configurable as 0-5V, 0-10V, or 0-20mA inputs and 1 analog output that is user configurable as 0-10V or 0-20mA. Additional digital and analog I/O, including thermocouple inputs may be added using plug-in expansion boards. The VB-2XXX controllers feature one RS232 serial port, one RS485 serial port and each supports MODBUS RTU/ASCII protocols as either a Master or a Slave device.

  • Capabilities: Machine control, Data Logging and IoT /Telematics Connectivity
  • Applications: mobile, industrial, environmental, agricultural, construction, and other markets
  • Communication: WiFi, Ethernet, cellular (optional)
  • Operating Temperature: -40° to +80°C
