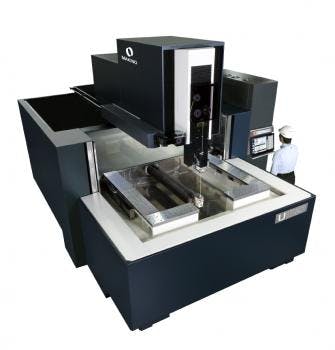

U1310 wire EDM machine improve ease of operation, machining speed and accuracy in large work piece applications up to 79 x 63 in. and weighing more than 6 tons (13,228 lb).
Machine features the world’s only programmable 3-Sided Drop Tank design, and lowers below the work table height. This offers superb unobstructed access for work piece loading/unloading and setups, improves ergonomics for machine maintenance and operation, and simplifies process automation.
The available H.E.A.T. configuration incorporates a combination of flushing enhancements and special generator upgrades that greatly increase cutting speeds on the most difficult machining applications, and enables up to 43% faster machining times and up to 33% reduction in wire consumption, compared to previous technology.
- Table Size: Opposed L-Shape (67.7 x 58.1 in.)
- X 51.57 in.
- Y 39.76 in.
- Z 20.47 in. (optional 24.41 in.)
- U Axis ±3.98 in.
- V Axis ±3.98 in.
- Available Wire Size 0.008”, 0.010”, 0.012” Ø
- Drop Tank Yes
- Max Workpiece Size: 79 x 63 in.
- For work pieces weighing up to 6,000 kg
