Advanced Quartz Crystal Microbalance Analyzer

Dec. 1, 2015

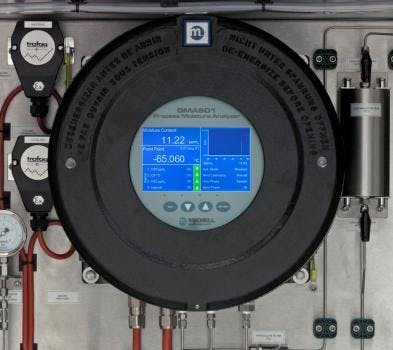

QMA601 Process Moisture Analyzer provides reliable, fast and accurate measurement of trace moisture content in a wide variety of process applications where keeping moisture levels as low as possible is of critical importance.

It allows older plants to retro-fit to take advantage of the latest in quartz crystal microbalance technology.

  • Precision measurement from 0.1 to 2000ppmv
  • Accuracy of ±0.1ppmv at <1ppmv and 10% of reading from 1 to 2000ppmv
  • Maintenance-free for 3 years
  • Built-in verification of customer process gas
  • IECEx, ATEX, TR CU Ex certified for Exd flameproof, cCSAus (pending) certified for explosion proof
  • Intuitive, color HMI with touch-screen keypad; no ‘hot work’ permit required
  • 14 internal alarms
  • 21 predefined carrier gases and 3 user-defined gases
  • Proven Michell Instruments quality: 40 years of expertise in moisture measurement built into the design
