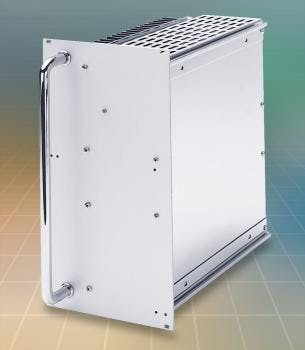

C/B 4500 Series of 6U DC/DC and AC/DC converter modules and battery chargers utilize industrial grade components to deliver up to 1,600 w of output power. They feature three output powers of up to 900, 1,200 and 1,600 w, along with nine standard dc input voltage ranges: 10-16, 20-32, 40-64, 50-80, 80-160, 160-320, 320-640 and 450-800 v.
the compact and robust design provides a highly efficient, space-saving solution for the most extreme environments in industries such as rail and transit for railway controls, communications equipment, and beyond (onboard and wayside), military applications, transportation, alternative energy applications, and process control systems.
All C4500 models have comprehensive protection circuitry including over-voltage, overload, short circuit protection, and thermal shutdown with auto restart. Fully customizable solutions are available upon request.
- Three output powers of up to 900, 1,200 and 1,600 w
- Nine standard dc input voltage ranges: 10-16, 20-32, 40-64, 50-80, 80-160, 160-320, 320-640 and 450-800 v
- AC input options: 1-Phase 115VAC or 230 VAC, as well as 3-Phase inputs of 3 x 200 VAC, 3 x 400 VAC, or 3 x 480 VAC
- Standard operating temperature: –20°C to +75°C (derate above +55°C), with an option for –40°C
