Stainless Steel Valves Isolate Instruments for Maintenance, Integration

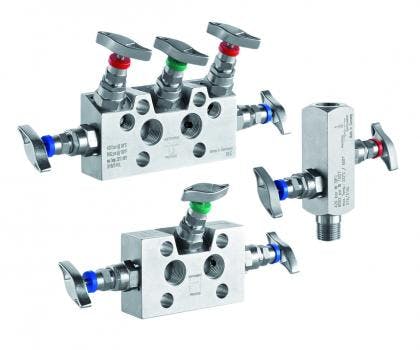

Line of stainless steel valve and manifold accessories are implemented in pressure instrument installations. PL02 pressure limiting valve protects the instrument assembly from severe pressure spikes, gauge valve-V02 isolates the instrument from the process allowing for maintenance and integration, and multi-valve manifolds are available in several configurations to bleed, isolate or equalize pressure.

• Direct & remote mount 3 valve manifolds-V02: 316L SS, 6092 psi at 140°F (60°C) Max Temperature Rating (PTFE) 392°F (200°C) at 1305 psi
• Pressure Limiting Valve-PL02:Max Pressure Rating 14,500 psi; Max Temperature Rating 175°F (80°C)
• Gauge Valve-V02 Series: Max Pressure Rating (PTFE) 6092 psi at 140°F (60°C); Max Temperature Rating (PTFE) 392°F (200°C) at 1305 psi
