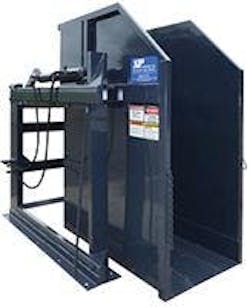

With dump height ranging from 24–84 in., ROLO Box Dumper is suited for carts, bins, and cans, efficiently handling scrap metals, metal chips, corrugated materials, and hospital waste. System is available with 5–10 hp motor and 6–10 gpm pump. Built with structural steel frame, dual cylinders, and high-tensile steel pivot shaft for durability and stability, customizable dumper features max capacity of 8,000 lb and cycle times ranging from 26–137 seconds.

Key specifications for the ROLO Box Dumper:

• Maximum Dump Height: 84”
• Minimum Dump Height: 24”
• Dump Angle: 135°
• No. Cylinders: 2
• Maximum Capacity: 8,000#
• Motor Sizes: 5 HP to 10 HP
• Pump Sizes: 6 GPM to 10 GPM
• Cycle times (sec.): 26 to 137
