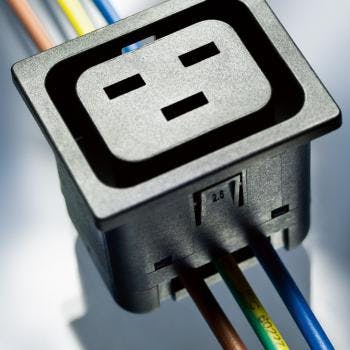

J-Style Schurter IEC outlet 4710, rated 20 amp at 250 vac by UL/CSA and 16 amp at 250 vac by ENEC, are qualified for use in applications designed to IEC/EN 60950, and are ideal for use in power distribution units, and other equipment where multiple outlets are banked in series.
Outlets allow wires to be bussed across the terminals, and they connect common terminals all at once, speeding the assembly and significantly reducing labor costs. The IDC terminals are arranged either along or across the connector pin axis for a horizontal or vertical mounting orientation.
They also mate with V-Lock latching cordsets designed to prevent unintentional disconnection from the power.
- Rated 20 amp at 250 vac by UL/CSA and 16 amp at 250 vac by ENEC
- Designed to IEC/EN 60950
- Approvals include cURus, ENEC and CCC.
