300°F Vertical Conveyor Oven

May 19, 2016

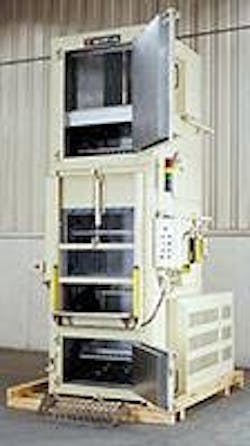

No. 957 is a 300ºF, electrically-heated vertical conveyor oven from Grieve, currently used for curing potting compounds at the customer’s facility. Workspace dimensions of this oven are 38 x 36 x 92 in. 20 kw installed in Incoloy-sheathed tubular elements heat the oven chamber, while a 4,200-cfm, 3-hp recirculating blower provides vertical upward airflow to the workload.


  • 4-in. insulated walls
  • top-mounted heating chamber
  • aluminized steel interior and exterior
  • air-operated lift door at loading/unloading position
  • two access doors for heating chamber and floor
  • eleven workload trays, each 14 x 30 in.
  • built to JIC/NEMA 12 electrical standards
