Detect & Localize Cable Faults & Measure Cable Length
Aug. 3, 2016
Related To: MOHR Test & Measurement, LLC

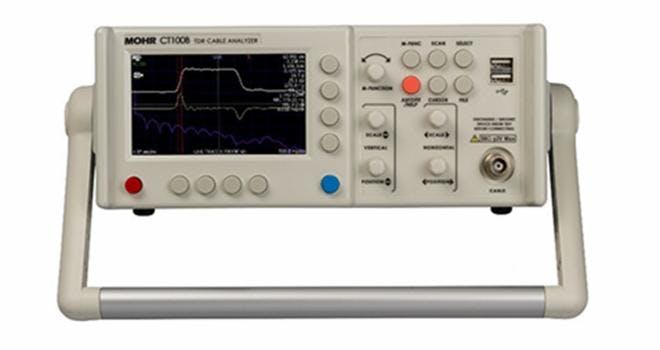

CT100B TDR Cable Analyzer is the industry's only high-resolution portable TDR, ideal for precision testing of all types of coaxial, twisted-pair, and multiconductor cables and connectors.
The CT100B is the only cable TDR with frequency-domain analysis tools including Return Loss (S11), Cable Loss (S21), and Smith charts. The CT100B is the only instrument exceeding all TDR performance specifications of the popular Tektronix 1502C TDR.
TDR Specifications:
- 60 ps risetime (20-80%, CT100HF)
- Up to 8.3 GHz test bandwidth (CT100HF)
- 500 Hz frame rate for transient faults
- 75 µm (0.003 in.) cursor resolution
- 16-bit impedance measurements
