Schaffner EMC

ECOsine 3420 Provides Active Harmonic Filtering for 30 to 300 Amp Applications.

Literature details how troublesome harmonics are introduced by variable-speed drives.

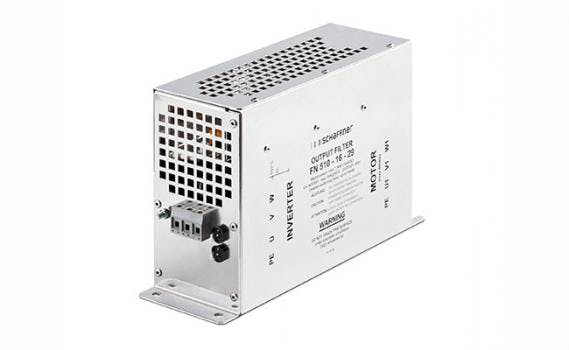

FN510 dv/dt filter eliminates premature motor damage caused by high dv/dt, over-voltages on motor cables, motor overheating, and more.

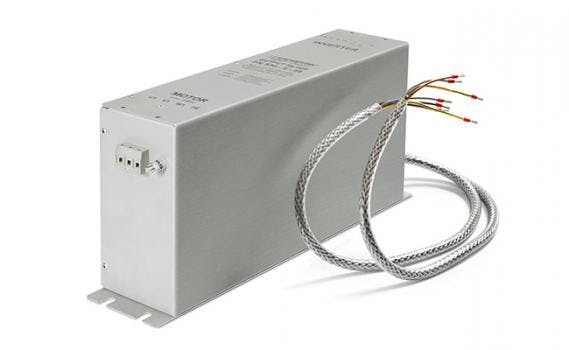

FN530 sine wave filter with EMC output filter eliminates premature motor damage.

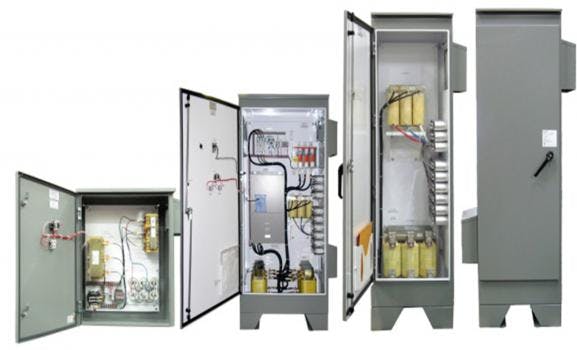

FN3415 is the newest addition to the ECOsine® family of Passive Harmonic Filters, for 60 Hz, 480 or 600 VAC applications. Available in various NEMA enclosures, they are easily...

FN5060 dv/dt filter protect AC motors from destructive effects of peak voltages and inrush amps, increasing service life and system reliability. This patented technology protects...

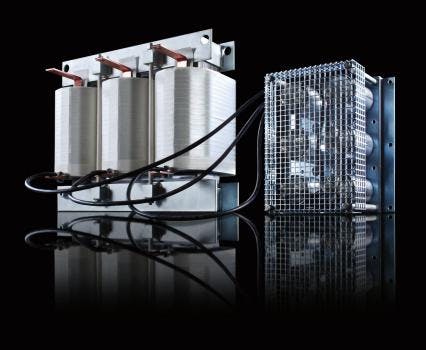

ECOsine 60-Hz passive harmonic filters remove harmful harmonics of a pre-determined order to increase the reliability of supplied power, and thus extend the service life of downstream...

This 28-page, full-color brochure details ECOsine Passive Harmonic Filters which mitigate the harmful effects of harmonics.Passive harmonic filters are used within a wide variety...

These Sine Wave filters eliminate premature motor damage caused by high dv/dt, overvoltages, cable ringing, motor overheating and eddy current losses caused by Variable Frequency...

Schaffner EMC introduces new literature detailing the company’s wide range of power quality solutions to the problems associated with the use of variable frequency drives (VFD...
