Class 1 Division 2 Ultraviolet Fluorescent Light for Corrosion Resistant Requirements - UV ONLY

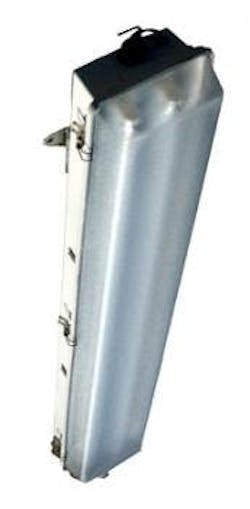

The Magnalight HALP-48-2L-UV Hazardous Area Ultraviolet Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments.
The HALP-48-2L-UV hazardous area ultraviolet fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion.
This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-48-2L-UV also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.
| HALP-48-2L-UV Hazardous Area | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 2, Groups A, B, C, D |
| Dimensions: W-8.25 " L-52 " H-7" | UL 844 |
| Weight: 8 Lbs | UL 1598A Marine Type (Salt water) California Title 24 Compliant  |
| Total Watts: 108 watts* | |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | |
| Total Lumens: STD-T8-UV Bulbs N/A | |
| Lamp Life Expectancy: STD-T8-UV Bulbs N/A | |
| Efficiency: STD-T8-UV Bulbs N/A | |
| Operating Temp Range: T4A Rated -30 C to 70 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C  |                 |
| Beam Angle: N/A | Special Orders- Requirements |
| Color Temp: Ultraviolet | Contact us for special requirements |
| Mounting: Flange type stainless steel | |
| Wiring Hub: 1/2 inch threaded | |
| U.L Approval: U.S Certificate Canada Certificate | |
|                Meets US Coast Guard specifications.  |               |
|                *Wattage totals are lamps only and may vary with different lamps.  |
