The Easier Solution for Air Stripping

Aug. 7, 2019
Q.E.D.'s air stripper tray offers high removal efficiencies and easy maintenance.

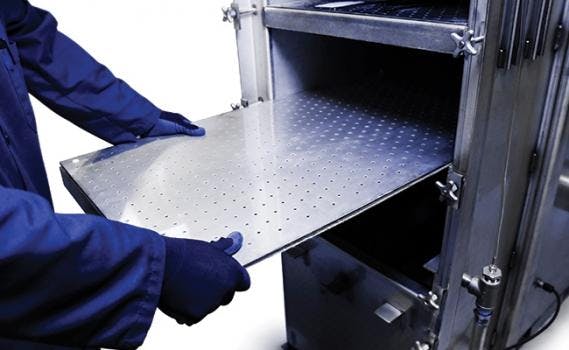

The EZR Tray is a sliding tray, stainless-steel air stripper ideal for removing volatile organic compounds (VOCs) from contaminated groundwater and waste streams. The tray air stripper’s exclusive design results in very high removal efficiencies in an easier-to-maintain process unit.


Offering numerous advantages over other air stripping methods, the EZR Tray provides easy access for process monitoring and inspection, even while in operation. It is less prone to fouling and can be cleaned by one person with a simple pressure wash. It is also less intrusive at a site and offers a wide turn-down range. Typical treatment costs range from 0.10 to $0.20 per 1,000 gallons of drinking water.


Air stripping with the EZR Tray air stripper is an effective way of removing trihalomethanes (THMs), which can form in drinking water when disinfectants like chlorine break down precursor organic compounds, normally organic solids. As contaminated groundwater enters through the top of the tray, millions of air bubbles are forced by blower pressure up through the perforated trays. This creates a turbulent froth zone with an extremely high air-to-liquid surface area for mass transfer of VOCs from liquid to air. Using the froth instead of a conventional tower packing delivers high VOC removal efficiencies, even under fouling conditions. The EZR Tray air stripper is also easier to inspect and maintain than other alternatives.


  • Ease of access
  •  Single person operation and maintenance
  • Snap-together tray is up to 50% lighter
  • Less costly spare tray sets
  • Patanted water flow path design allows flow rates of up to 120gpm
  • Easier start-up
