IR Windows Let you See More

March 20, 2019
FLIR's large IR windows provide a 6x wider field of view.

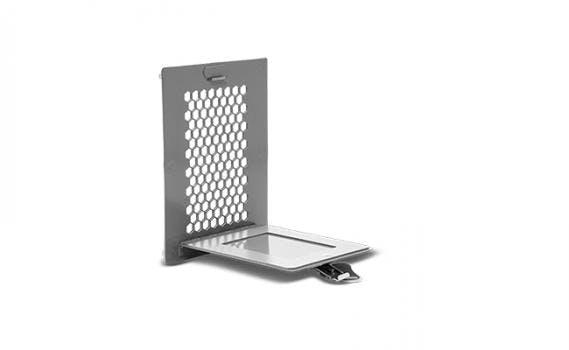

Large Format Infrared Inspection Windows, designed for wider viewing angles in challenging industrial settings, provide a larger viewing area with an unparalleled field of view compared to traditional round IR windows—up to six times that of previous windows. Advanced, impact-resistant polymer optics ensure long-term, stable installations in challenging industrial settings, even with exposure to pollutants, vibration, high-frequency noise, and humidity.


The windows are available in 6, 12, and 24-in. widths and can be used with both visual and infrared cameras (visual, ultraviolet and shortwave, midwave, and longwave IR spectrums) to perform inspections of enclosed electrical equipment without any disruption.


All three sizes are available in models for indoor installations with aluminum grilles (model: IRW-xPC) and for outdoor and marine applications with stainless-steel grilles and weatherized enclosures (model: IRW-xPS). To protect the windows, especially in high-traffic areas, locking covers secure the viewing panes from any impacts, debris, dust, and airborne environmental pollutants.

  • Maximum Operating Temperature -40° to 200°C (-40° to 392°F)
  • NEMA Environment Type IP65 / NEMA 4x
  • Voltage Range Any
  • Optic Temperature Range -40° to 325°C (-40° to 617°F)
  • Gasket Material UL 94 5VA TPE; -40° to 273°C (-40° to 523°F)
  • Hardware Material 316 stainless steel
  • Automatically Grounded Yes
  • Outdoor Applications N/A


Imaging & Optical:

  • Optic Reinforced Grill Material Aluminum Reinforcing Grill (IP22 / IP2x Standard)
  • Optic Material UL 746 compliant, visual, UV and IR transmissive polymer; -40° to 325°C (-40°to 617°F)
  • Ultraviolet [UV] Yes
  • Visual Inspection Yes


  • Overall Height 21.8 cm (8.6 in)
  • Overall Width 16 cm (6.3 in)
  • Aperture Overall Height 15 cm (5.9 in)
  • Aperture Overall Width 9.1 cm (3.6 in)
