Stage Provides High Resolution

    Sept. 16, 2017
    Moticont offers a compact and accurate voice coil stage.
    Related To:
    66676b3dc40378000847911a 830 350

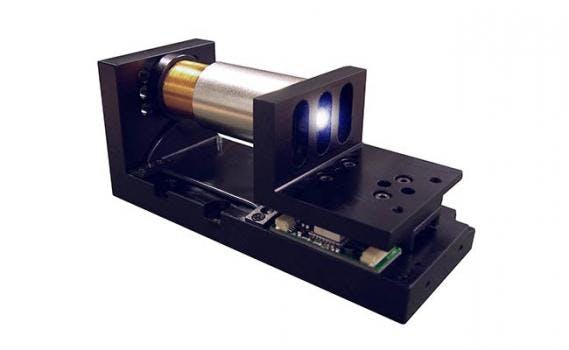

    The compact HCDS-025-038-02-B1-01 Voice Coil Stage has a footprint of just 2.000 in. wide by 5.000 in. long and features a positioning resolution of 1 micron and a 0.125 in. open aperture.  This precision cross roller stage has a 0.97 in. range of motion with 1.0 lb. of continuous force and 3.2 lb. peak force.

    The zero-cogging, clean, quiet, efficient, low inertia, high acceleration, high-speed voice coil-driven stage has a built-in home switch for accurate initialization. As the coil is fixed and the magnetic assembly moves, there are no moving electrical components to fail. Designed for closed-loop servo operation, an integral quadrature optical encoder with differential outputs is included.

    The stage table is equipped with 4 8-32UNC-28 mounting holes. Pre-drilled and counter-bored mounting holes in the base and a plug-and-play wired connector allow for easy integration into new or existing applications. This black anodized voice coil stage with a clear aperture is ideal for laser drilling, optical focusing, testing, laser steering, mirror positioning, scanning, oscillation, switching, applications in industrial, medical, metrology, and research fields.

    The HCDS-025-038-02-B1-01, voice coil-driven stage is available as part of an XY or XYZ stage.  It can also be ordered as a complete plug-and-play system with a controller. Other sizes and models are also available.
