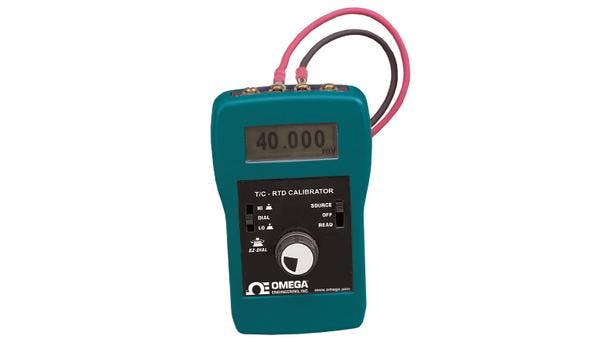

Dual Thermocouple and RTD Calibrator - CL543

Feb. 23, 2006

The CL543 dual T/C and RTD calibrator provides direct temperature calibration to all types of instruments such as transmitters, recorders, controllers, alarms, and data acquisition and computer systems. The CL543 also reads RTD and T/C outputs and displays temperature. It is compatible with pulsed systems and transmitters and has a patent pending feature for troubleshooting. OMEGA's new CL543 offers direct temperature input/output; eight standard T/C types available: J, K, E, T, R, S, B, N and mV; eight RTD curves available in Platinum, Copper, and Nickel; with superior battery life of 45 hours under typical continuous usage.

• Accurate to ±0.2°C (±0.4°F) with 0.1 or 0.01° Resolution • Direct Temperature Input/Output • Eight Standard T/C Types Available: J, K, E, T, R, S, B, N, and mV • Eight RTD Curves Available in Platinum, Copper, and Nickel • Auto Detection of 2-, 3-, or 4-Wire Connection Indicator • Guaranteed to Work with All Pulsed Instruments • Compatible with Devices Using Pulsed Excitation Currents, Including PLCs, DCS, and Recorders • EZ-Dial™ Knob Easily Adjusts Output by 0.1° • EZ-Check™ Switch for 0 and 100% Span Adjustments • Store New EZ-Check™ Values by Pressing the EZ-Dial Knob • Selectable Auto-Stepping • Superior Battery Life of 45 Hours under Typical Continuous Usage • NIST-Traceable Calibration Certificate Included
