NSCR700 Spring Rewind Reels

July 2, 2006

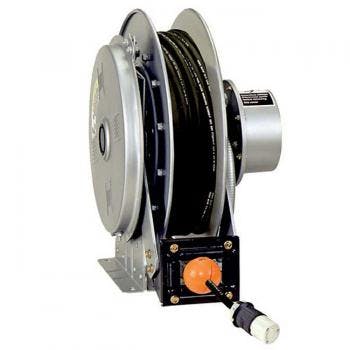

The NSCR700 cable reel features a compact design with a sturdy, narrow frame for use with live electrical cable. It can be mounted in confined spaces and is ideal for use with power tools, lights, machinery, and generators.



A heavy-duty spring motor provides self-contained rewind power, with a non-sparking ratchet assembly that locks the reel when the desired length of cable is payed out. The NSCR700 houses a standard 3-conductor, 45 amp, 600V collector assembly with #8 gauge wiring from the collector ring to the junction box.



The NSCR700 Series accommodates 50 to 120 ft. of 14/3 to 8/3 AWG live electrical cable and is equipped with a four-way adjustable roller assembly. A cable stop is also available to prevent roller and connector damage and permit the adjustment of free cable length.

  • Heavy-duty spring motor.
  • Non-sparking ratchet.
  • Declutching arbor.
  • 3-conductor, 45 amp, 600V collector assembly with #8 gauge wiring.
  • Double brushes per circuit; brushes are copper graphite with copper alloy rings.
  • Additional conductors or higher amperage (up to 300 amps) available; consult factory.
  • Silver collector available.
  • Supplied with 4-way roller assembly; roller position must be specified.
  • Cable stop should be used.
