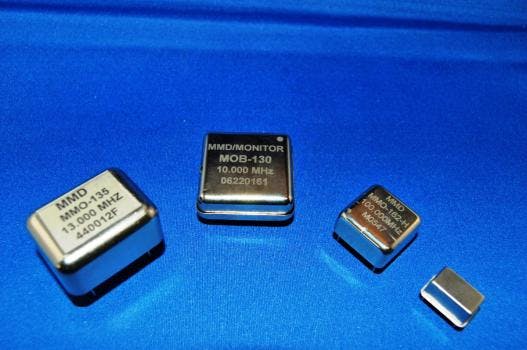

A line of high-frequency oven-controlled crystal oscillators (OCXOs) features a non-PLL (phase-locked loop) design that enables users to specify frequencies up to 1 GHz, which results in less external frequency multiplication, less phase noise, and low jitter.



Units can maintain stabilities as low as ±250 ppb over an operating temperature range of -40 to 185ºF and ±100 ppb at temperatures from -4 to +158ºF. The high-frequency OCXOs come in a wide variety of package options and voltage configurations. Moreover, their enhanced internal voltage regulation minimizes the requirements for high-stability power supplies; the units support supply voltages as low as 3.3V.



MOF SeriesESD SensitiveRoHS/RoHS II CompliantPart LEAD (Pb) FREEFrequency10 MHzSubtypeCrystalOperating Temperature-40 to 185ºF (-40 to 85°C)Frequency Stability±100 ppbPackage/Case4-SMD, No LeadPart StatusActiveLength0.8 in. (20.32 mm)TypeOCXOWidth0.5 in. (12.7 mm)Mounting TypeSurface MountHeight0.4 in. (10.41 mm)Voltage3.3VOutputHCMOSCurrent - Supply (Max)220mABrandMMD
