Multiple-Channel Sensor System

Aug. 25, 2017
Hardy Process Solutions offers a 28-channel sensor system.

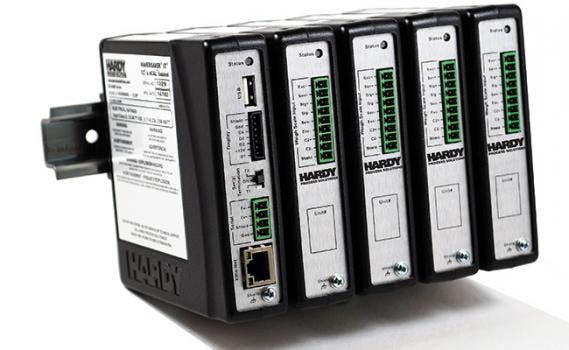

HI 6600 Modular Sensor Systems for PROFIBUS-DP control systems allows manufacturers, OEMs and systems integrators to configure up to 28 channels of stable, processed weight over a single PROFIBUS-DP connection that sends data for 10 modules at a time to a control system. This distributed design provides the lowest cost, on a per channel basis, for weight into a control system, greatly simplifying wiring and network addressing, all in an ultra-compact, power efficient design. Hardy also provides a PROFIBUS.GSD file, which simplifies integration.


Weight processors are used as front ends to control systems, or standalone for all types of general weighing applications. Operating blind or with an optional display, they measure, condition, and communicate weight without any need to control.  The HI 6600 series is designed to support weighing applications in process and packaging such as inventory management, blending, filling and checking. The HI 6600 is especially well suited for batching systems, multi-head fillers and tank farms.


The HI 6600 series delivers stable processed weight with a resolution of 1:10:000 and an update speed at 110 updates per second, per channel (processor, display and communications). The HI 6600 system enhances the productivity of process manufacturing systems where fast, precise weight-based controls are critical.


The HI 6600 series is delivered with the Hardy Process Toolbox, including C2 electronic calibration, INTEGRATED TECHNICIAN diagnostics, and WAVERSAVER vibration immunity.  An embedded webserver in the Hardy Gateway Module allows access to any of the connected weight processing modules from anywhere on the user’s communications network.
